INNO M7 Clad Alignment Fusion Splicer Kit with 3 Year Warranty
M7, an active clad-alignment splicer with an ultra-portable design, is the most efficient fusion splicer in the market. This small (4.88" H x 5.66" W x 5.15" D and only 3.43 pounds) but accurate fusion splicer with many exceptional functionalities. The M7's high-resolution color LCD touch screen offers large and clear fiber images and by double-tapping the screen, users can zoom in the fiber image to the industry’s highest magnification of 400x. Fiber condition can be easily checked with unaided eyes. Moreover, the adjustable strap hanger make users to customize M7 for their working condition.
M7 Fusion Splicer Kit Includes:
- Fusion Splicer / M7
- High Precision Cleaver / V1
- Simple Optical Fiber Collector
- HTN-SOC SOC Heater Cover
- AC Adapter
- Cooling Tray
- Electrodes / E-50
- Battery Pack / LBT-3000
- Power Cable / ACC-25
- USB Cable / CTA-01
- Carrying Case / MBX-N05
- 3 YEAR WARRANTY

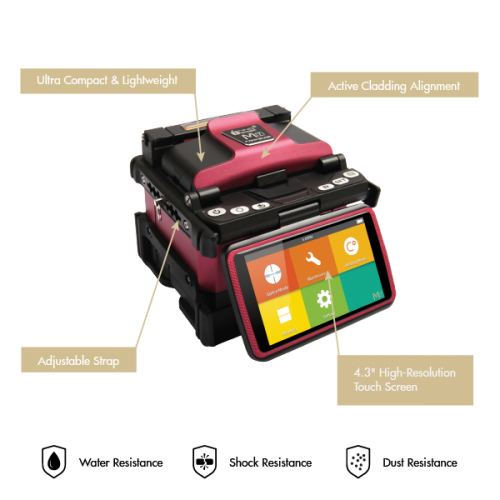

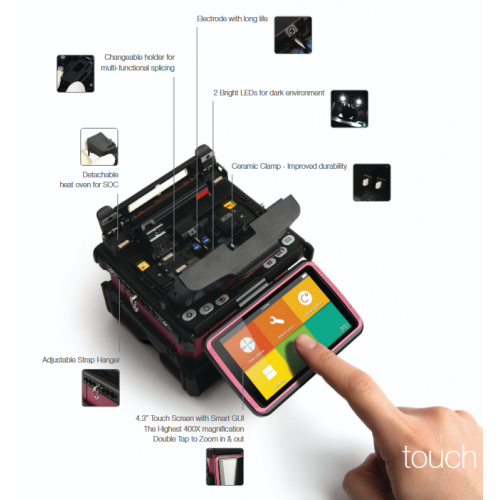

M7 Fusion Splicer Features:
Ultra-Portable Design Active V-Groove Fusion Splicer
Active V-Groove Clad Alignment Splicing Method
Truly Light Weight and Handy Size
Adjustable Strap Hanger
Outstanding Magnification and Resolution

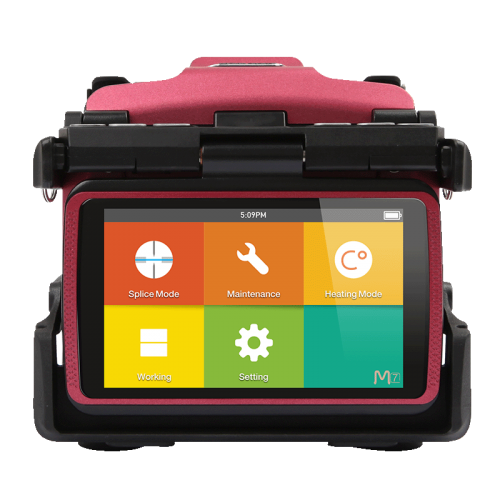

4.3” Color LCD Touch Screen
Double Tapping (Zoom in & out)
Splicing Technology:
Active Clad Alignment
Splicing Time:
7sec (quick mode) / 9 sec (typical)
Heating Time:
13 sec (45mm, slim 60mm), 15 sec (60mm)
Typical Loss:
0.03dB(SM) / 0.01dB(MM) / 0.05dB(DS) / 0.05dB(NZDS) / 0.03dB(G.657)
INNO M7 Clad Alignment Fusion Splicer Kit
- Brand: INNO Instrument
- Product Code: M7 Fusion Splicer
- Availability: In Stock
-
$3,000.00
