INNO M9 Core Alignment Fusion Splicer Kit with 3 Year Warranty

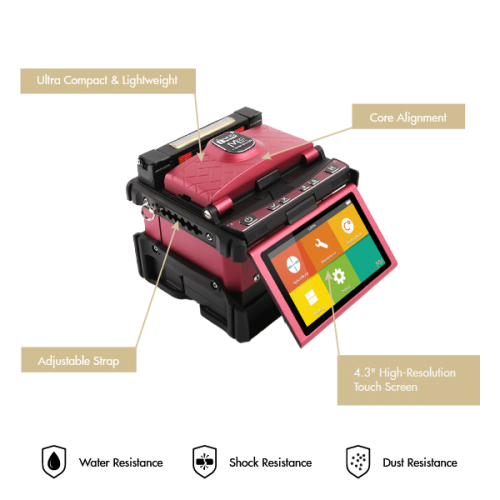

M9, a core-alignment splicer with ultra-portable design, is one of the most efficient fusion splicers in the market. This compact and sophisticated fusion splicer inherits many remarkable functionalities from sister products. M9’s 4.3 inch high-resolution color LCD touch screen with user-friendly intuitive GUI(Graphic User Interface) offers large and clear fiber images to users. By double-tapping the screen, users can enlarge / reduce the screen up to 400X and check the optical fiber with clear images. With M9’s Adjustable strap hanger users can customize their working station. M9 is genuinely world’s most efficient hand-held fusion splicer in the telecommunications industry.

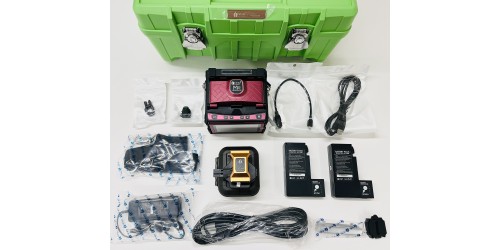

M9 Fusion Splicer Kit Includes:
- Fusion Splicer / M9
- High Precision Cleaver / V1
- Simple Optical Fiber Collector
- Fiber Holder / FH-40
- AC Adapter
- Cooling Tray
- Electrodes / E-50
- Battery Pack / LBT-3000
- Power Cable / ACC-25
- USB Cable / CTA-01
- Carrying Case / ICC-50
- 3 YEAR WARRANTY
M9 Fusion Splicer Features:
Highest 400X Magnification and Resolution
4.3" Color High Resolution Color LCD Touch Screen
2 Bright LED for Dark Environment
Electrode life:
5500 arcs, extend use with electrode grinder
Applicable fibers:
SM(ITU-T G.652&G.657) / MM(ITU-T G.651)
DS(ITU-T G.653) / NZDS(ITU-T G.655)
Detachable SOC Heating Oven
Harsh Weather Conditions Adaptability
INNO M9 Core Alignment Fusion Splicer Kit
- Brand: INNO Instrument
- Product Code: M9 Fusion Splicer
- Availability: In Stock
-
$6,000.00
